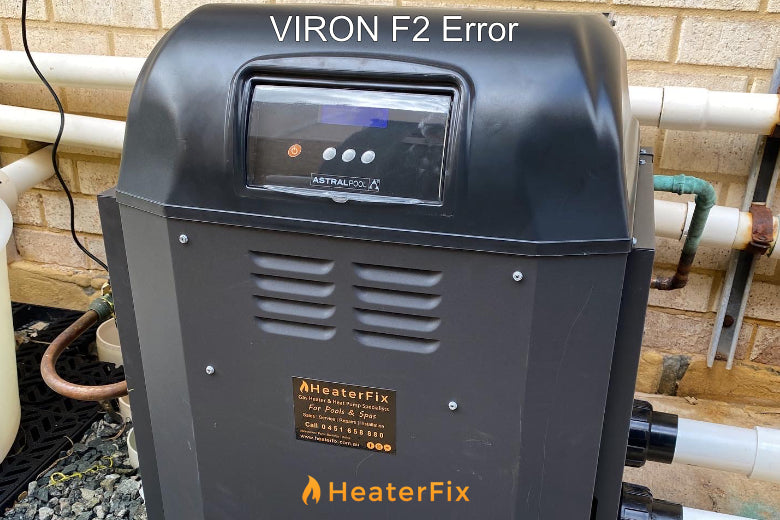

Viron Pool & Spa Heater F2 Error – Causes, Meaning & Fix
If your Viron gas pool or spa heater is showing an F2 error code, don’t panic. In most cases, this is a normal safety response and not a major heater fault. The F2 error is designed to protect the heater when water temperature becomes too high.
This guide explains what the Viron F2 error means, why it occurs, and what steps you can take to clear it safely. It applies to Viron gas pool heaters and spa heaters running on Natural Gas or LPG.
What does the F2 error mean on a Viron heater?
The F2 error on a Viron pool or spa heater indicates the heater has detected excessive water temperature. This signal is triggered by the high-limit temperature sensor, which is part of the heater’s safety circuit.
The high-limit sensor monitors the temperature of water leaving the heater. If water temperature rises above the safe threshold, the sensor interrupts the safety circuit and the heater shuts down to prevent overheating.
Common reasons a Viron heater shows an F2 error
Often, the F2 error appears during normal spa use. Example: if the spa is set to a high temperature and the circulation pump stops, hot water can sit inside the heater housing. When the pump restarts, that concentrated hot water can pass the sensor and briefly trigger an F2 warning.
Common causes include:
- Water temperature exceeding the heater set point
- Pump shutting off before the heater cools down
- Low water flow through the heater (restricted circulation)
- Blocked/dirty filter or partially closed valves
- A failing or corroded hi-limit sensor
In normal operation, the heater will not restart until the water temperature drops slightly below the set temperature.
How to clear an F2 error on a Viron pool or spa heater
In many cases, the F2 error clears on its own once cooler water starts circulating. First, confirm the pump is running and water flow through the system is normal (filter clean, valves open, good water flow).
If the error does not reset automatically, try a safe power reset:
- Turn the heater off at the power point
- Unplug the heater power lead from the power point
- Leave it powered off for 10–15 seconds
- Plug the power lead back into the power point
- Restore power and ensure the pump is running
- Turn the heater back on and check the display
This reset can clear a persistent lockout. If the F2 code returns immediately after resetting, the hi-limit sensor may be reading incorrectly and may need replacement. It is not uncommon for heater sensors to be replaced, they are a wearable part.
Where is the hi-limit sensor located on Viron heaters?
On Viron gas heaters, the high-limit sensor is installed on the outlet side of the water in/out manifold where heated water leaves the unit. It is usually fitted onto the manifold on the hot water outlet side and connects into the heater’s low-voltage safety circuit.
Access typically requires removing the heater cabinet panels so the manifold area and sensor wiring can be inspected.
Replacing a Viron F2 hi-limit sensor
If the sensor is corroded, leaking at the base, or failing intermittently, replacement is usually the permanent fix. The part most commonly associated with the F2 code is the 52°C hi-limit sensor.
Parts links:
- Viron F2 hi-limit sensor (52°C)
- Brass hi-limit sensor base (only if your base is damaged, cracked or leaking)
When to call a professional
If the F2 error continues after confirming water flow and performing a reset, you likely have a sensor or circulation-related issue that needs proper diagnosis. Because this is a gas appliance, servicing and repairs should be completed by a licensed professional.
Need help fast? You can book a Viron heater service with HeaterFix and we’ll advise the correct fix based on your heater model and symptoms.
Need more help with a Viron heater F2 error?
For more information regarding the Viron F2 error please contact us here - Contact us . ToTo book a repair of heater service please go here - Book a Service
This article is provided for general information only. HeaterFix recommends that all gas heater repairs, servicing and replacements be carried out by a qualified licensed gas fitter.
