Raypak Residential & Premium Cupronickel Heat Exchanger Assemblies
The Raypak Cupronickel Heat Exchanger Assembly is the ideal replacement solution for leaking or damaged Raypak gas pool heater heat exchangers. Manufactured from high-quality cupronickel tubing for superior corrosion resistance, these replacement components are available for both Residential and Premium Raypak gas pool heaters.
Whether you're replacing only the tube bundle or fitting a complete heat exchanger assembly with new manifolds, HeaterFix supplies genuine-quality replacement parts to suit a wide range of Raypak heater models.

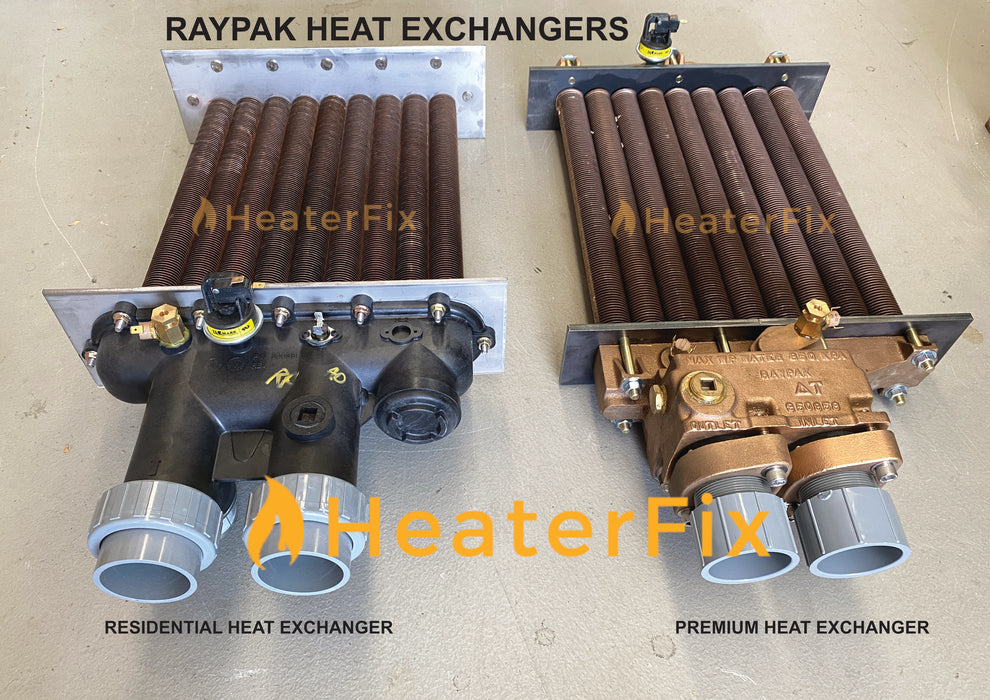

Residential (left) and Premium (right) Raypak Cupronickel Heat Exchanger Assemblies. Residential heaters use black Capron manifold headers, while Premium heaters utilise heavy-duty bronze manifold headers.
Compatible Heater Models
Residential Models
- Raypak 200 Residential
- Raypak 280 Residential
- Raypak 350 Residential
- Raypak 430 Residential
Premium Models
- Raypak 280 Premium
- Raypak 430 Premium
Available Product Options
| Heater Model | Tube Bundle | Complete Heat Exchanger |
|---|---|---|
| Raypak 200 Residential | Tube Bundle + Seal O-Rings | Tube Bundle + Seal O-Rings + Capron Manifolds |
| Raypak 280 Residential | Tube Bundle + Seal O-Rings | Tube Bundle + Seal O-Rings + Capron Manifolds |
| Raypak 350 Residential | Tube Bundle + Seal O-Rings | Tube Bundle + Seal O-Rings + Capron Manifolds |
| Raypak 430 Residential | Tube Bundle + Seal O-Rings | Tube Bundle + Seal O-Rings + Capron Manifolds |
| Raypak 280 Premium | Tube Bundle + Seal Gaskets | Tube Bundle + Seal Gaskets + Bronze Headers |
| Raypak 430 Premium | Tube Bundle + Seal Gaskets | Tube Bundle + Seal Gaskets + Bronze Headers |
Read More - Heat Exchanger Information
Why Replace the Tube Bundle?
The tube bundle is the heart of your Raypak heat exchanger. It transfers heat from the burner into the pool water while keeping the combustion gases and water completely separate. Over time the tube bundle can fail due to corrosion, poor water chemistry, electrolysis, scale build-up or freeze damage.
Replacing the tube bundle or complete heat exchanger assembly restores heating performance and is often considerably more economical than replacing the entire gas pool heater.
Choose the Correct Option

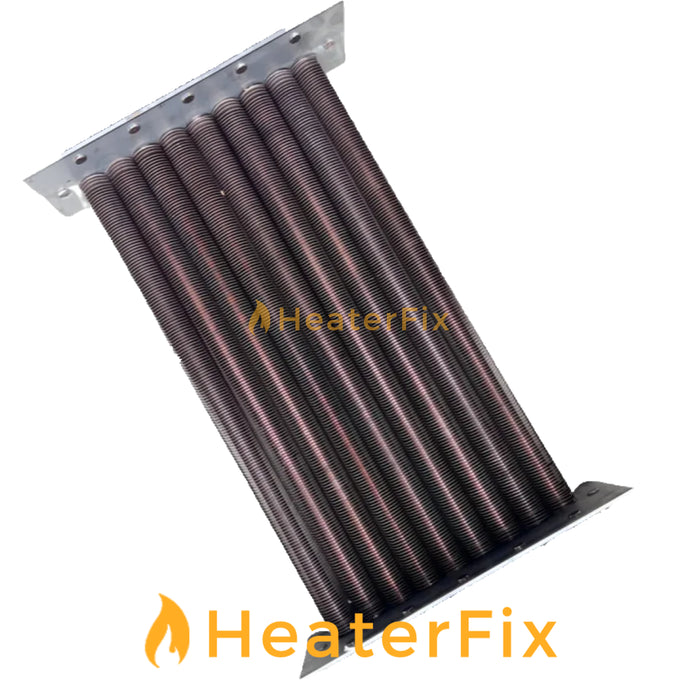

Tube Bundle
This option is ideal if your existing manifold headers are still in good condition and can be reused.
- Residential models include new Seal O-Rings.
- Premium models include new Seal Gaskets.
- Perfect when replacing only the internal tube bundle.

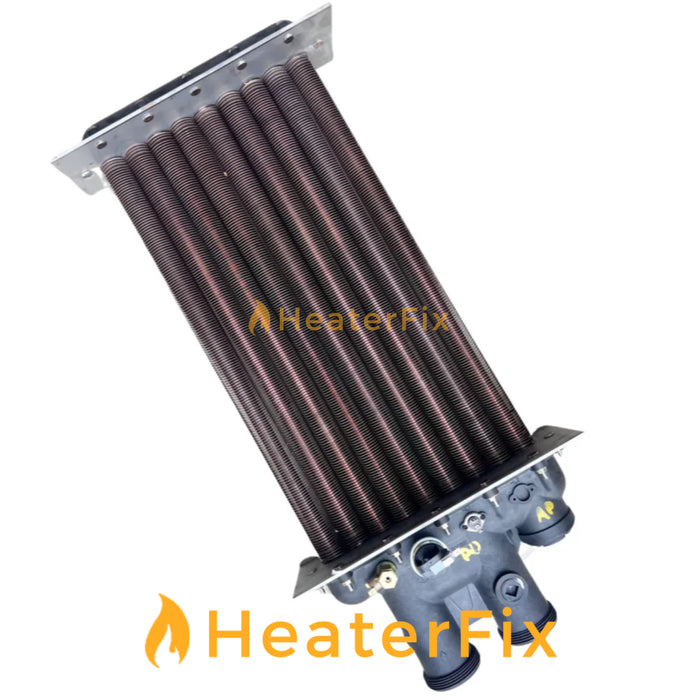

Complete Residential Heat Exchanger
Includes:
- Cupronickel Tube Bundle
- New Seal O-Rings
- Black Capron Manifold Headers
Suitable for Raypak 200, 280, 350 and 430 Residential heaters.

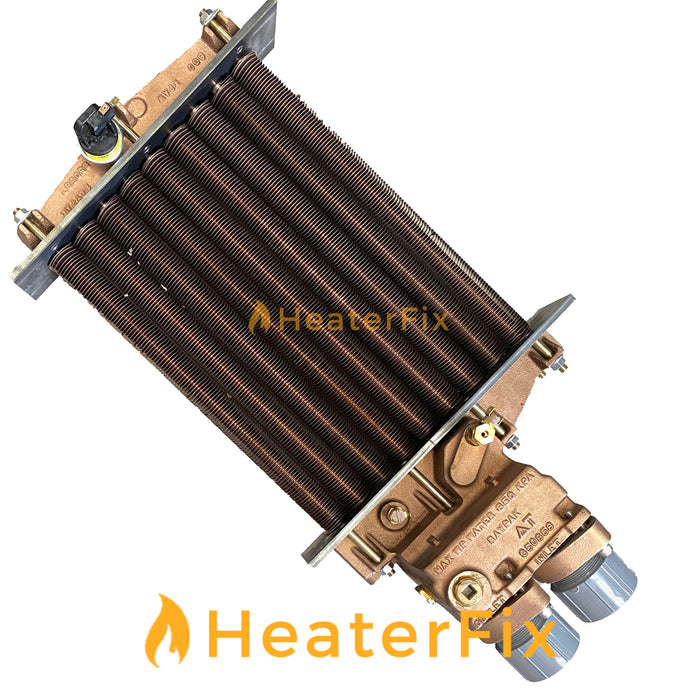

Complete Premium Heat Exchanger
Includes:

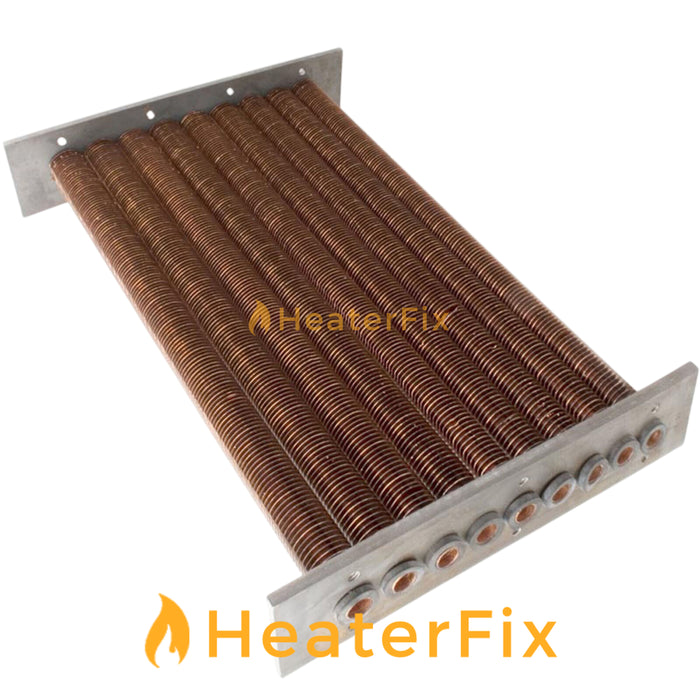

- Cupronickel Tube Bundle
- New Seal Gaskets
- Bronze Manifold Headers
Suitable for Raypak 280 Premium and Raypak 430 Premium heaters.
Common Signs Your Heat Exchanger Has Failed
- Water leaking from inside the heater.
- Pinhole leaks in the tube bundle.
- Corrosion inside the waterways.
- Reduced heating performance.
- Green staining around the heat exchanger.
- Freeze damage.
- Cracked or damaged manifold headers.
Frequently Asked Questions
What is the difference between Residential and Premium heaters?
Residential heaters use black Capron manifold headers, while Premium heaters use heavy-duty bronze manifold headers.
What is a tube bundle?
The tube bundle is the cupronickel core of the heat exchanger. It is supplied with the required seals so your existing manifold headers can be reused if they remain in good condition.
When should I purchase the complete heat exchanger?
Choose the complete heat exchanger if your existing manifold headers are cracked, damaged, warped or heavily corroded, or if you simply prefer to replace the entire assembly.
Which heat exchanger suits my Raypak 280 or 430?
Both the 280 and 430 heaters were manufactured in Residential and Premium versions. Please ensure you select the correct model before ordering.
Common Google & AI Searches
- Raypak tube bundle
- Raypak heat exchanger
- Raypak 200 tube bundle
- Raypak 280 tube bundle
- Raypak 350 tube bundle
- Raypak 430 tube bundle
- Raypak Premium heat exchanger
- Raypak Cupronickel heat exchanger
- Raypak heater leaking water
- Pool heater tube bundle replacement
Professional Installation Recommended
Replacing a tube bundle or complete heat exchanger requires disassembly of the heater and reconnection of the water circuit. HeaterFix recommends installation by a qualified pool heater technician. While the heater is dismantled, it is also a good opportunity to inspect the bypass assembly, pressure switch, burner tray and ignition components to ensure reliable heater performance.
Why Buy From HeaterFix?
- Australian specialists in Raypak gas pool heater parts.
- Replacement tube bundles and complete heat exchangers for Residential and Premium heaters.
- High-quality cupronickel construction for long service life.
- Expert technical advice before ordering.
- Fast Australia-wide shipping.
Need help identifying your heater? Contact HeaterFix before ordering and we'll help determine whether your Raypak heater is a Residential or Premium model so you receive the correct replacement tube bundle or complete heat exchanger.
