Theralux Quantum UV Disinfection System
Theralux Quantum UV Disinfection Systems
Advanced Oxidation Process (AOP) and ultraviolet (UV) technology designed to produce crystal-clear, comfortable, and low-chlorine pool water. Available in 35W, 55W and 110W models.
Why choose Theralux Quantum Purity?
Quantum Purity combines ultraviolet light with a photocatalytic surface to generate powerful oxidising species that help break down organic contaminants at a molecular level. The result is brilliantly clear water that feels softer and requires less chlorine when part of a balanced sanitising system.
Designed for comfort, clarity and balance
- Helps reduce chemical odours and irritation by oxidising organics that form chloramines.
- Pairs well with salt chlorination and traditional dosing systems.
- Service-friendly design with lamp-life indicator for easy maintenance.
How it works
As water passes through the chamber, UV light energises the photocatalyst. This reaction creates short-lived hydroxyl radicals that neutralise microorganisms and organic matter instantly—without adding by-products or altering water chemistry.
Models & Technical Specifications
| Specification | Quantum 35W | Quantum 55W | Quantum 110W |
|---|---|---|---|
| Max pool size | 35,000 L | 65,000 L | 130,000 L |
| Max flow rate | 10 m³/h | 14 m³/h | 28 m³/h |
| Min flow rate | 4 m³/h (all models) | ||
| Max power use | 40 W | 64 W | 128 W |
| Power supply | 100–240 V AC / 50–60 Hz | ||
| Ingress protection | IP64 | ||
| Working pressure | 3 bar maximum | ||
| Connections | 2” / 63 mm stepped ABS unions + reducers 1½” / 50 mm | ||
| Lamp life | ~14,000 hours | ||

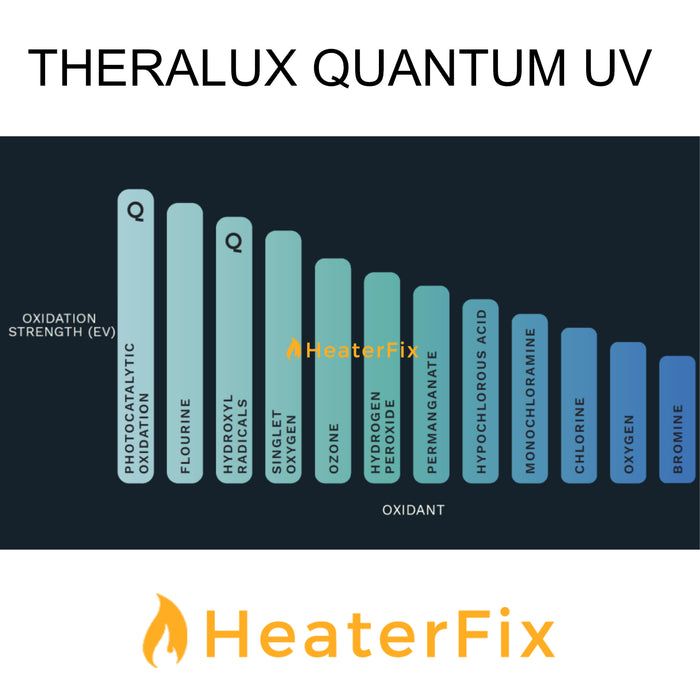

| Oxidation process | Photocatalytic oxidation + hydroxyl radical generation | ||

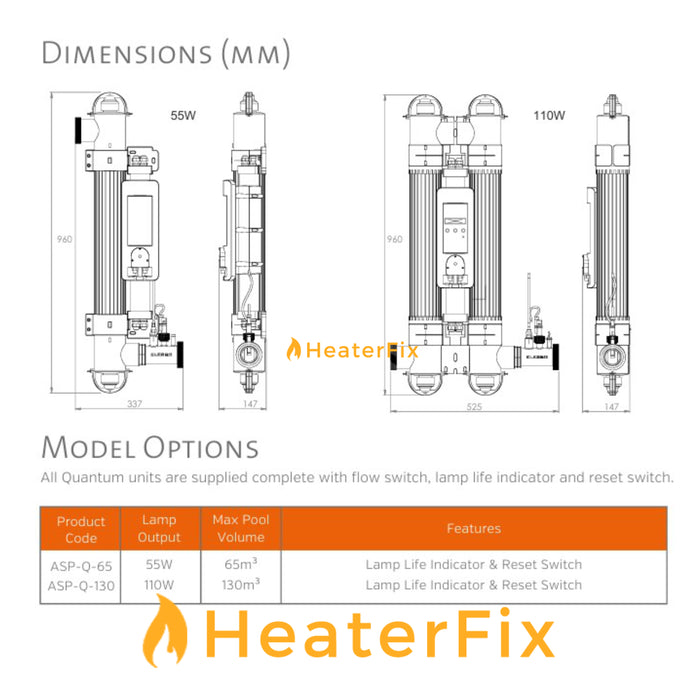

| Dimensions (L × W × H) | 331 × 132 × 623 mm | 331 × 120 × 981 mm | 519 × 151 × 982 mm |
| Weight | 4.86 kg | 7.29 kg | 12.15 kg |
Specification data from official Theralux documentation.

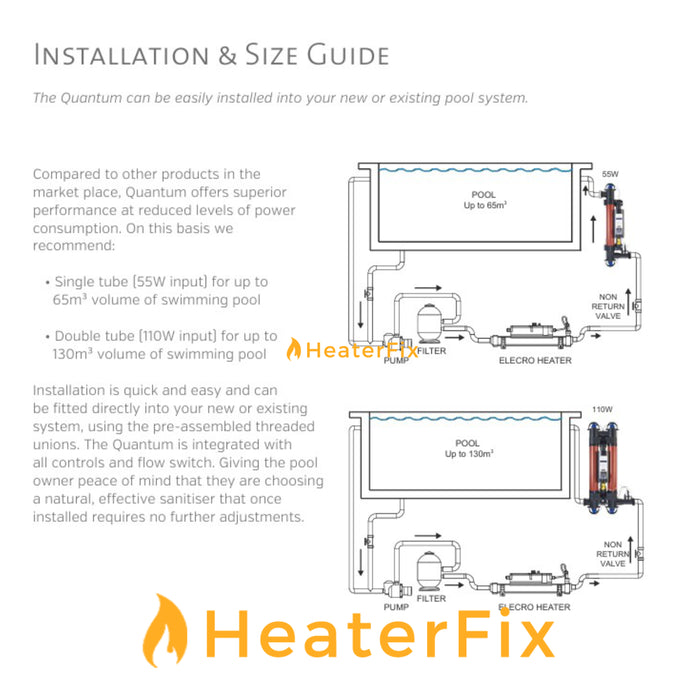

Installation notes
- Install downstream of filtration and heating but before chemical dosing.
- Allow ~1 m service space for lamp and quartz access.
- Maintain minimum flow; add a bypass if system exceeds rated maximums.
- Use correct PVC/ABS cement and supplied O-rings on unions.
- Electrical connection by a licensed electrician with RCD protection.
Water quality guidance
Operate within recommended ranges (pH 6.8–8.0, TA 80–140 ppm, stabiliser < 50 ppm). Balanced chemistry prevents scaling or corrosion and enhances system performance.
Maintenance
Routine maintenance includes lamp replacement when output decreases, quartz sleeve cleaning, and O-ring inspection. The built-in indicator alerts when lamp service is due.
Frequently asked questions
Does Quantum Purity eliminate the need for chlorine?
No. It reduces reliance on chlorine by oxidising contaminants in-line, but a small residual sanitiser must remain in the pool for continuous protection.
Is it compatible with saltwater chlorination?
Yes. Quantum Purity works seamlessly with salt chlorinators and is built from materials suitable for saltwater pools.
How do I choose the right model?
Match model size to pool volume and system flow rate: 35W ≈ 35 000 L, 55W ≈ 65 000 L, 110W ≈ 130 000 L.
What is the typical lamp life?
Approximately 14 000 hours under normal operation; the lamp indicator provides a service reminder.
All information is provided as general guidance. Performance depends on correct installation, water balance and maintenance. Specifications may change without notice.
