Why Raypak Pool Heaters Need a Sacrificial Anode

A Raypak sacrificial anode, also called a ProTek Shield anode, is a corrosion protection device designed to help protect the internal metal components inside Raypak gas pool heaters. The sacrificial anode absorbs galvanic corrosion and electrolysis before corrosion can attack expensive heater components such as the heat exchanger, water pathways and internal fittings.

Many pool owners do not realise their Raypak gas heater contains a sacrificial anode until corrosion damage has already started appearing inside the heater. In salt water pools especially, the sacrificial anode becomes one of the most important maintenance components in the entire heating system.

If the anode is badly corroded, heavily deteriorated or completely consumed, the heater itself becomes more vulnerable to internal corrosion damage, rust, leaks and premature heater failure.

View the genuine Raypak sacrificial anode replacement kit here.

What Is a Raypak Sacrificial Anode?

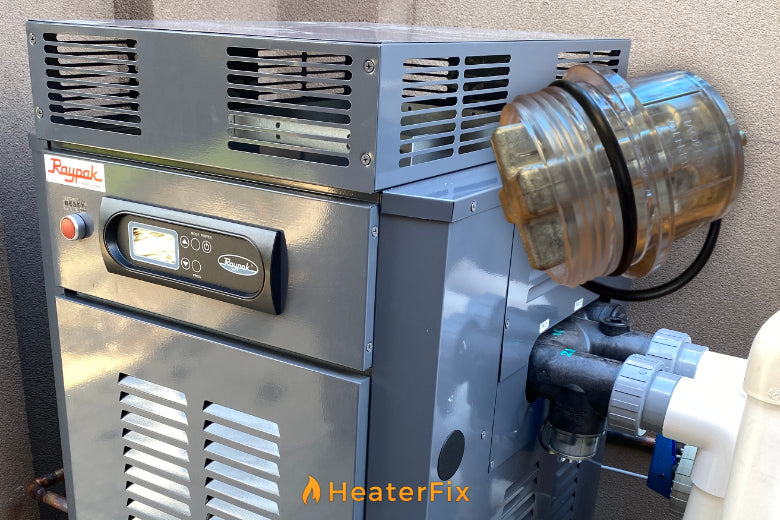

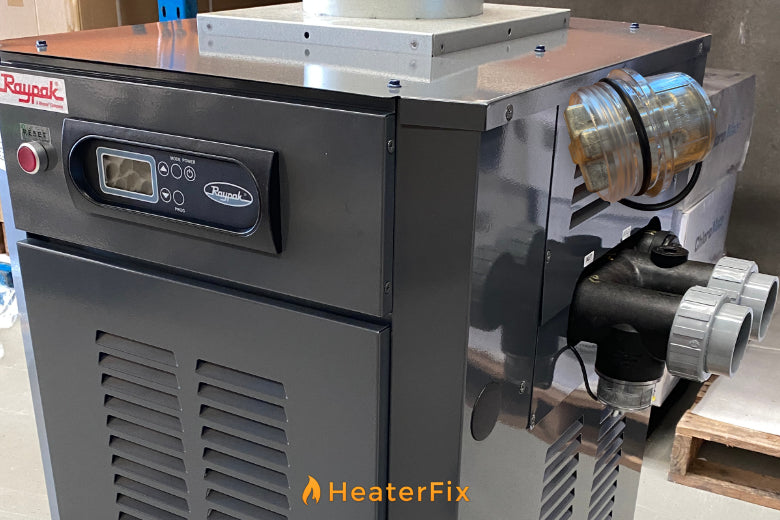

A Raypak sacrificial anode is a specially designed corrosion protection component installed inside the heater water circuit. It is commonly referred to as the Raypak ProTek Shield system.

The anode is designed to corrode before the heater’s more expensive metal components can become damaged. This process helps reduce corrosion inside the heater caused by salt water, electrolysis, galvanic activity and aggressive pool chemistry.

Instead of corrosion attacking the heater internals first, the sacrificial anode gradually deteriorates over time. This is why it is called “sacrificial” — because it sacrifices itself to help protect the heater.

Why Sacrificial Anodes Are Important in Salt Water Pools

Salt chlorinated swimming pools create a more aggressive environment for metal components compared to many traditional chlorine pools. Even properly balanced salt pools can still increase corrosion risk inside gas pool heaters over time.

This is one of the main reasons Raypak gas pool heaters use ProTek Shield sacrificial anode technology. The anode helps absorb corrosive activity before it can attack expensive heater components.

Sacrificial anodes are especially important in:

• Salt chlorinated swimming pools
• Coastal pool installations
• Older Raypak gas heaters
• Pools with poor water chemistry history
• High mineral or hard water areas
• Heaters showing signs of scale or corrosion

How Does the Raypak ProTek Shield Work?

The Raypak ProTek Shield system works by attracting corrosive electrical activity away from the heater’s internal metal components.

Without a sacrificial anode, corrosion may eventually begin attacking:

• Heat exchanger components
• Internal water pathways
• Metal fittings
• Threaded connections
• Water circuit components
• Internal plumbing assemblies

As the sacrificial anode deteriorates, it helps preserve the lifespan of the heater itself.

Once the anode is fully consumed, the heater loses an important level of corrosion protection.

How Long Does a Raypak Sacrificial Anode Last?

Most Raypak sacrificial anodes last approximately 1 to 3 years depending on water chemistry, salt levels, heater usage, environmental conditions and overall pool maintenance.

Salt water pools and poorly balanced water chemistry can significantly reduce sacrificial anode lifespan.

HeaterFix recommends inspecting the sacrificial anode during routine heater servicing, especially before heavy heating seasons or summer pool use.

Signs a Raypak Sacrificial Anode Needs Replacing

Many pool owners never inspect the sacrificial anode until the heater already shows signs of corrosion damage.

Common signs the anode may need replacing include:

• The anode is heavily deteriorated or eaten away
• Visible white calcium or mineral build-up
• Rust staining around heater fittings
• Corrosion around plumbing unions
• Water leaks from the heater
• Older heater with unknown service history
• Pool operates on a salt chlorinator
• Corrosion visible inside the heater cabinet

If the anode is badly consumed, replacing it early may help prevent much more expensive heater repairs later.

Can a Bad Sacrificial Anode Cause a Heater Leak?

Yes. Once a sacrificial anode is fully consumed, the heater becomes more vulnerable to internal corrosion damage which may eventually lead to water leaks, damaged fittings and heat exchanger failure.

While not every heater leak is caused by a failed anode, corrosion protection becomes significantly reduced once the sacrificial anode has deteriorated completely.

What Happens If the Anode Is Not Replaced?

Ignoring a worn sacrificial anode may contribute to:

• Internal corrosion damage
• Heat exchanger deterioration
• Rust contamination
• Water leaks
• Damaged threaded fittings
• Reduced heater lifespan
• Expensive heater repairs
• Premature heater replacement

This is why the Raypak ProTek Shield system should be treated as an important preventative maintenance component rather than simply another spare part.

Genuine Raypak Sacrificial Anode vs Aftermarket Parts

For corrosion protection components, material quality and correct fitment matter. Genuine Raypak sacrificial anode kits are specifically designed for compatibility with Raypak gas pool heaters.

Cheap aftermarket anodes may:

• Use lower quality materials
• Deteriorate too quickly
• Provide reduced corrosion protection
• Fit incorrectly
• Cause sealing or thread issues

For critical heater water circuit components, genuine Raypak replacement parts remain the safest option.

Buy Genuine Raypak Sacrificial Anode Kit

Can You Replace a Raypak Sacrificial Anode Yourself?

Some technically capable pool owners may be able to replace the anode themselves depending on the heater model and installation access.

However, in many cases:

• Fittings may be seized
• Scale build-up may be present
• Corrosion may already exist internally
• Water isolation may be required
• Thread sealing may be necessary

If the heater already shows signs of corrosion or leaking, further inspection is usually recommended before simply replacing the anode alone.

Raypak Heater Corrosion Prevention Tips

Replacing the sacrificial anode is only one part of proper pool heater maintenance.

To help reduce corrosion risk inside a Raypak gas heater:

• Maintain correct pool water chemistry
• Monitor salt levels regularly
• Inspect the heater during annual servicing
• Replace worn anodes before complete deterioration
• Check for early signs of leaks or corrosion
• Use genuine Raypak replacement parts
• Maintain proper pH and alkalinity levels

Poor water chemistry can damage gas pool heaters very quickly, especially in salt chlorinated pools.

Order a Genuine Raypak Sacrificial Anode Kit

If your Raypak sacrificial anode is badly corroded, deteriorated or has never been checked, replacing it is a smart preventative maintenance step.

HeaterFix supplies genuine Raypak gas heater parts Australia-wide including sacrificial anodes, sensors, igniters, pressure switches, control boards and replacement heater components.

Buy Genuine Raypak Sacrificial Anode Kit

Frequently Asked Questions

What does a Raypak sacrificial anode do?

A Raypak sacrificial anode helps protect internal heater components by corroding before the heater’s metal components become damaged.

What is Raypak ProTek Shield technology?

Raypak ProTek Shield technology uses a sacrificial anode system to help reduce galvanic corrosion and internal heater damage.

How long does a Raypak sacrificial anode last?

Most sacrificial anodes last between 1 to 3 years depending on water chemistry, salt levels and heater usage.

Are sacrificial anodes important for salt water pools?

Yes. Salt chlorinated pools can increase corrosion risk inside gas pool heaters, making sacrificial anodes especially important.

Can a worn sacrificial anode cause heater leaks?

A worn anode can increase internal corrosion risk which may eventually contribute to leaks and heat exchanger damage.

Should I use a genuine Raypak sacrificial anode?

Yes. Genuine Raypak sacrificial anodes are designed specifically for compatibility with Raypak gas pool heaters and provide the correct corrosion protection.
